Case Study: Enhancing Tactical Rifle Performance with Advanced Materials

In tactical operations, every ounce of gear directly impacts an operator's endurance, agility, and overall effectiveness. Excess weight can lead to fatigue, reduced mobility, and diminished performance in high-pressure situations. Additionally, tactical equipment must endure harsh conditions—heat, recoil, vibration—while maintaining reliability and precision. Traditional materials like aluminum alloys, commonly used in rifle construction, add unnecessary weight that can hinder mobility and reduce overall operational efficiency for the warfighter.

To address these challenges, Alpine Advanced Materials replaced legacy aluminum components with advanced materials such as HX5®, our flagship multi-scale reinforced polymer, and high-performance nylon (HPN), a glass and carbon filled nylon polymer with exceptional impact resistance. By reducing weight, improving thermal stability, and enhancing durability, these materials enabled a higher-performing solution for tactical rifle components that are critical for operators in the field.

The Challenge of Legacy Materials

Tactical rifles rely heavily on materials like aluminum alloys (e.g., 6000 series) for critical components. While aluminum offers essential structural integrity, it comes with notable performance trade-offs:

• Heat Transfer: During sustained firing, rifle components can retain heat, causing temperatures to rise significantly. Traditional materials like 6061-T6 aluminum, with high thermal conductivity, transfer and hold heat in user-contact areas. This heat retention can compromise both ease of use and safety, particularly in critical situations.
• Excess Weight: Aluminum adds significant weight to the rifle in comparison to advanced materials such as thermoplastics, accelerating operator fatigue and reducing maneuverability in dynamic tactical scenarios.
• Limited Design Flexibility: Reliance on machining as a primary manufacturing method limits the ability to create complex geometries, often requiring time-intensive secondary processes to achieve more intricate designs. This increases production times and costs, hindering the ability to meet evolving needs efficiently.

Advanced Materials: The Future of Tactical Excellence

To mitigate weight, thermal management, and durability challenges in tactical equipment without compromising strength, Alpine Advanced Materials replaced legacy aluminum components with two of the aforementioned advanced materials from our portfolio: HX5 and HPN.

This replacement enabled the following performance improvements:

• Weight Reduction: Upgrading key rifle components with HX5 results in a total weight reduction of 758 grams allowing operators to carry more essential gear, such as an extra 30-round magazine (510 grams) or additional tactical equipment like grenades (397 grams each)—without sacrificing mobility or endurance.
• Thermal Stability: HX5® (0.5 W/m·K) and HPN offer significantly lower thermal conductivity compared to 6061-T6 aluminum (167 W/m·K), reducing heat transfer to user-contact areas like handguards. This keeps components cooler during sustained firing—up to 500°F—minimizing discomfort and the risk of injury.
• Durability and Impact Resistance: Inherent resistance to environmental factors such as UV light, extreme temperatures, harsh chemicals, and overall dimensional stability ensures reliability under demanding conditions, without the need for treatment or secondary processes.
• Manufacturability: Injection molding with HX5 and HPN reduces production time by 2-5x compared to machining metal components, cutting costs while maintaining precision with the added benefit of producing complex designs, such as integrated grips or mounts, without additional tooling or assembly.

HX5: Lightweight Performance

HX5, Alpine’s flagship multiscale reinforced polymer, provides significant benefits in terms of strength-to-weight ratio, thermal stability, and environmental resilience. The table below details the weight savings and key performance enhancements attained by replacing key components with HX5.

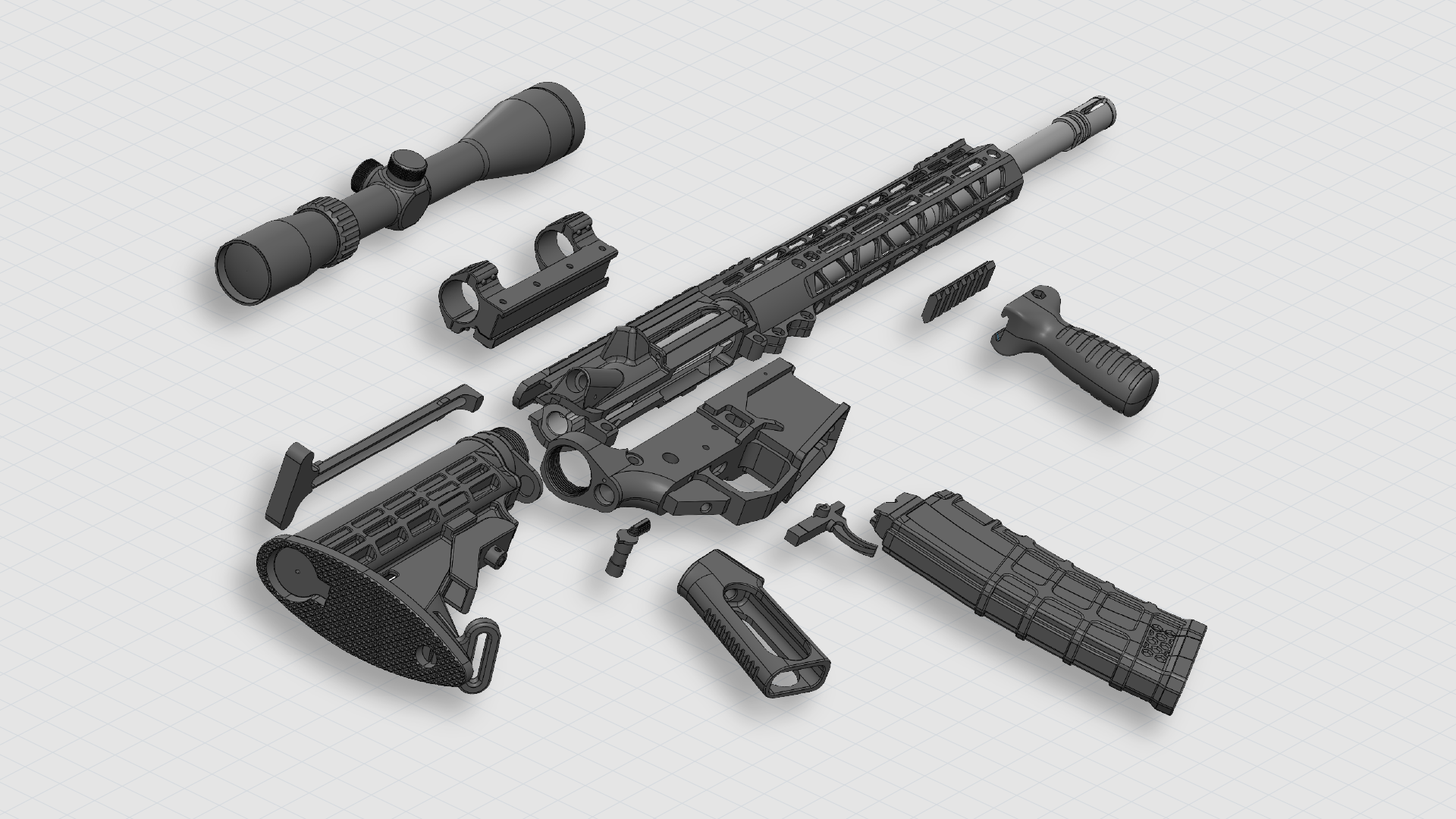

By replacing other smaller components—such as the trigger, hand grip, safety selector, Picatinny rail, and charging handle—with HX5, we achieved an additional weight savings of 158 grams, contributing to a total reduction of 758 grams. HX5’s exceptional strength-to-weight ratio ensures that even small, high-use parts maintain structural integrity under demanding conditions, while its low thermal conductivity and environmental resilience improve user comfort and extend component lifespan. This comprehensive weight optimization allows operators to carry more essential gear without compromising reliability or functionality.

Coatability

In addition to its inherent material properties described above, HX5 is exceptionally compatible with virtually any performance or aesthetic coating due to its high surface energy. HX5 is particularly well-suited for high-temperature coatings, as its elevated thermal stability allows it to endure curing processes beyond the capabilities of most thermoplastics. This ensures secure bonding and reliable performance under demanding conditions, including temperatures significantly above typical as-molded operating ranges.

Beyond the performance benefits, high coatability also supports the aesthetic flexibility of HX5, allowing for a range of finishes that are suitable for both professional and tactical applications. This adaptability is essential for users who require both functional durability and a certain level of customization based on operational or environmental needs.

HPN: Impact Resistance and Durability

To enhance the durability of mission-critical components such as the magazine, foregrip, and stock, these parts were replaced with high-performance nylon (HPN) to better withstand the high-impact and vibration loads encountered during tactical operations. These components experience frequent handling, recoil, and exposure to harsh conditions, which can compromise their performance over time. By using HPN, these parts benefit from superior impact resistance, ensuring reliable performance in the field even under extreme stress.

Key benefits of HPN in these components include:

• Impact Resistance: Glass and carbon fiber reinforcements provide exceptional energy absorption and dissipation, preventing deformation during impacts or recoil. This translates to enhanced reliability and functionality in critical situations where equipment must perform without fail.
• Tensile Strength: HPN’s high tensile strength ensures that components maintain their structural integrity under high-stress conditions, minimizing the risk of part failure during intense operations or in extreme environments.
• Heat Deflection: With a heat deflection temperature of up to 490°F (254°C), HPN ensures that components retain their integrity even under the heat generated from sustained fire, reducing the risk of warping or failure in high-temperature environments.

Setting New Standards in Rifle Design

By integrating advanced materials like HX5 and HPN into critical rifle components, we address some of the toughest challenges faced in tactical environments. These materials not only reduce weight—allowing operators to carry more gear—but they also enhance thermal stability and impact resistance, both crucial for mission success. With improved durability, soldiers experience less thermal discomfort, reduced risk of component failure, and a longer-lasting, higher-performing rifle system under extreme conditions.

Through selection of materials like HX5 and HPN, tactical rifle manufacturers can optimize the performance of mission-critical equipment, ensuring greater operational efficiency and mission readiness. These solutions reduce the need for frequent maintenance, lower production costs, and increase design flexibility—ultimately providing operators with the tools they need for success in high-stakes scenarios.
